Vessel Commerical LEO destinations and other space stations

[supersonic71]

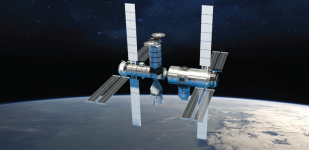

Would be fantastic to have more places to go to in Orbiter! Here are the winners for the NASA CLD contract :
Orbital Reef

NanoRacks Starlab

NG Space Station

This one got a separate contract :
Axiom space station



[supersonic71]

List of space stations - Wikipedia

en.wikipedia.org

Step by step, one day I hope the whole list will be in Orbiter!



[supersonic71]

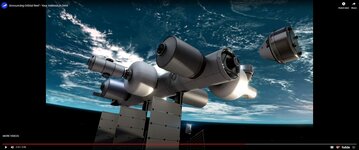

Will donate $15 to anyone who creates an opensource addon for the Orbital Reef! (first image)

(I realise its not much for the effort, but my country's currency is a bit messed up rn haha. Maybe others could donate to the creator too!).



[jedidia]

You could just start to learn modeling, and do it yourself, that might get you there faster. Most of the geometries are simple from what I can see, it looks like a great beginners project to start messing with blender.



[supersonic71]

I tried, but I found doing textures/uv mapping difficult. And making it look good in Orbiter.
Also got burnt out trying to learn multiple things at the same time ?



[PhantomCruiser]

For a second I thought that Orbital Reef was an Orbiter screenshot.

I think I could probably work up something pretty close with existing modules from the Hangar



[gattispilot]

I get this: Using Vessel builder. Need to add docks,.....



[gattispilot]

This is what I have so far. No interiors. Just 2 parts the main section with the windows and a connector. The main section has attachments for solar arrays,....... Both have docks



[Urwumpe]

Thank you!

Can you separate the main section into its three modules, so they could get launched? See here what I mean:

https://twitter.com/x/status/1466860094478598148



[gattispilot]

3 modules? Looks like I might need to make the one person vessel that was docked to the main section.

Right now there are 2 separate parts the connector and main part. Simple cfg. I based the size off a image. So to be a cargo may need additional attachments,.....

It looks like the array maybe next. Just by looking at the images. It looks like the lower arrays fold up.

Do we have the vessel that this would go up in? I want to see if even the right size. I wonder if the connector and the array are 2 vessels? Maybe there is no bottom dock? and the solar array is there?


So the bottom of the connector is open. The support bar for the array looks inside the vessel. And the center array look to be folding and can rotate



[Urwumpe]

I think it would make sense if the connector is one unit with the solar array and radiator unit. It should be possible to fold this all in a way that it can be launched.

The third module would be the small EVA hardsuit, robot or maintenance spacecraft or what ever it is. It is attached to the docking port of the connector initially. I suspect it is responsible for actually docking the habitat module to the connector.

EDIT:

By this quote from the short presentation for Orbital Reef:

Genesis Engineering Solutions – Providing the Single Person Spacecraft for routine external operations and tourist excursions

I would say, this is the small thing I mean and can be found here:

SPS - Genesis Engineering

Mars, International Space Station (ISS), Space tourism, One person spacecraft, Satellite servicing, Space repair, Asteroid, Phobos, Manned Maneuvering Unit (MMU), Space suit

genesisesi.com

Which would be cool to have in Orbiter anyway.



[gattispilot]

I think the hard thing is going to make it foldable. It looks it might fold just at the bottom of the connector. It looks like the glenn rocket uses a 7 M fairing so it should fit



[supersonic71]

Thank you very much



[Urwumpe]

I think the hard thing is going to make it foldable. It looks it might fold just at the bottom of the connector. It looks like the glenn rocket uses a 7 M fairing so it should fit

Yes, also it looks like there is a small slot to let the solar array boom rotate by more than 90° with the axis inside the cylindrical connector module, so that the solar arrays can fit folded into the dynamic envelope of a long 5m fairing.



[gattispilot]

I think something like this. It looks like the rod that the radiators are on is in the middle and then that black mast is behind,

As far as folding. The radiators fold up and maybe translate up. The mast and rod. I think I may make into several sections that telescopic out/in. I thought about scaling but then you run into a timing issue with the array structure.

The arrays will scale out. They will be able to rotate also.



[gattispilot]

Some progress and some sit backs. The set backs it trying to get the array inside the 7 meter fairing. But I think I can rescale the array so that it angle up and fits. I might just scale the rod and mast.

The blue Origin uses a 7 meter. The circle is 7 meters. I have the diameter of the connector at 5 meters.



[Urwumpe]

What if you move it further inside, so that the solar arrays are resting almost on top the center hatch, rotating it by 105-110° from the deployed position? Could that work?



[gattispilot]

Which part to rotate 105 to 110? But By reducing the shaft I can get this. the image on the right is reduced shaft and it fits in the 7 meter fairing/shroud



[Urwumpe]

The boom on which the radiators and the solar arrays are installed. The slot in the connector module looks like it can rotate more than 90° from launch configuration to final deployment.



[gattispilot]

OH. We get this. Then the array need to fold up 90 degrees. This will fit. I will need to make some changes.
